Settings for Multiprog98

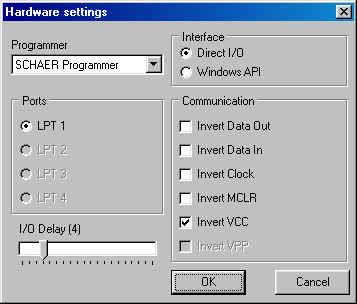

You need the following settings in IC-Prog:



You also need to set some jumpers correctly for SCHAER:

Jumper Position
J1 1-2
J2 1-2
J3 2-3
J4 1-2
J5 3-4
J6 7-8
J7 1-2



Here are the jumper positions for PHOENIX: (Requires serial port)

Jumper Position
J1 2-3
J2 2-3
J3 2-3
J4 1-2
J5 3-4
J6 3-4
J7 + J8 3-4

For additional information you can contact Multisat
