NVM3060 Support

The NVM3060 is a IM-Bus serial eeprom, which can be programmed with almost any serial programmer.

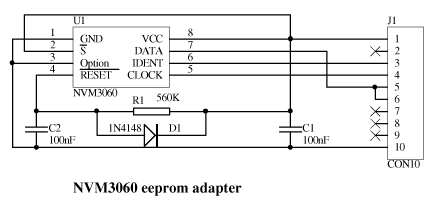

You have to use a special adapter:

Connect the wires on connector 10 to your favourite programmer

1 = VCC

3 = MCLR (5v, use microwire adapter)

4 = CLOCK

5 = DATA OUT

6 = DATA IN

(If you have separate DataOut and DataIn signals then connect them together)
