Settings for WILLEPRO Programmer

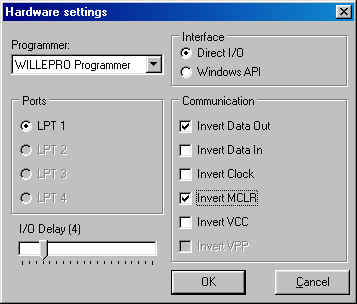

You need the following settings in IC-Prog for programming PIC's:

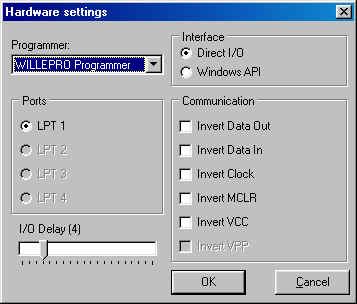

For programming Microwire devices (93Cxx) and 4-wire devices (59C11) you need the following settings:

IC-Prog only supports Microwire and 4-wire in 16 bits mode. Therefore pin 6 (ORG) of this socket, needs to be DISconnected from GND and CONNECTED to VCC!!!

For programming SPI-Eeproms (25xxx) you need the following settings:

For additional information you can contact Willem Kloosterhuis
